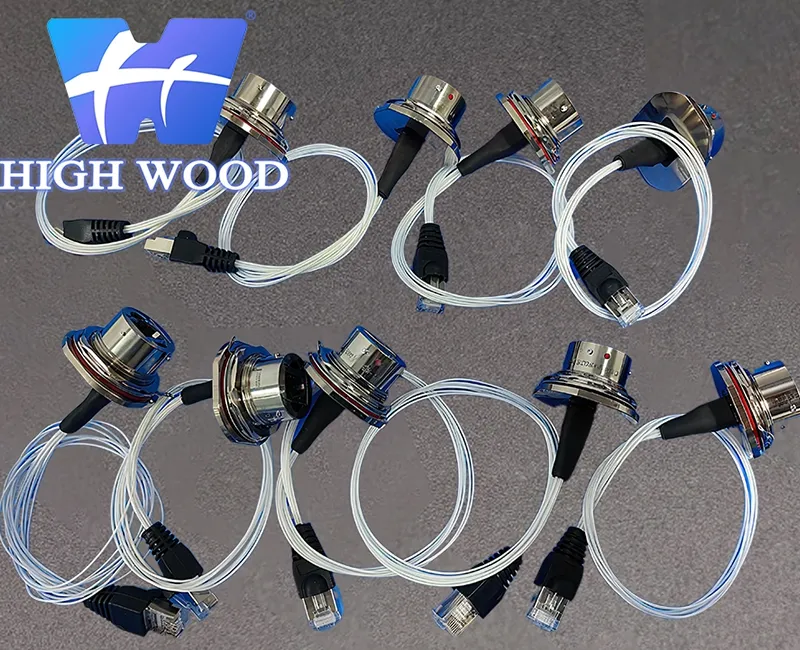

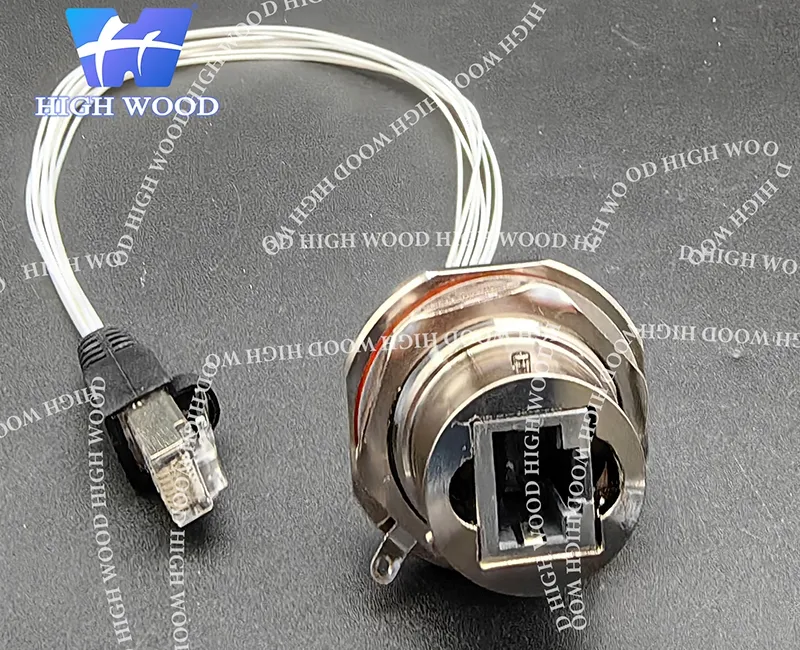

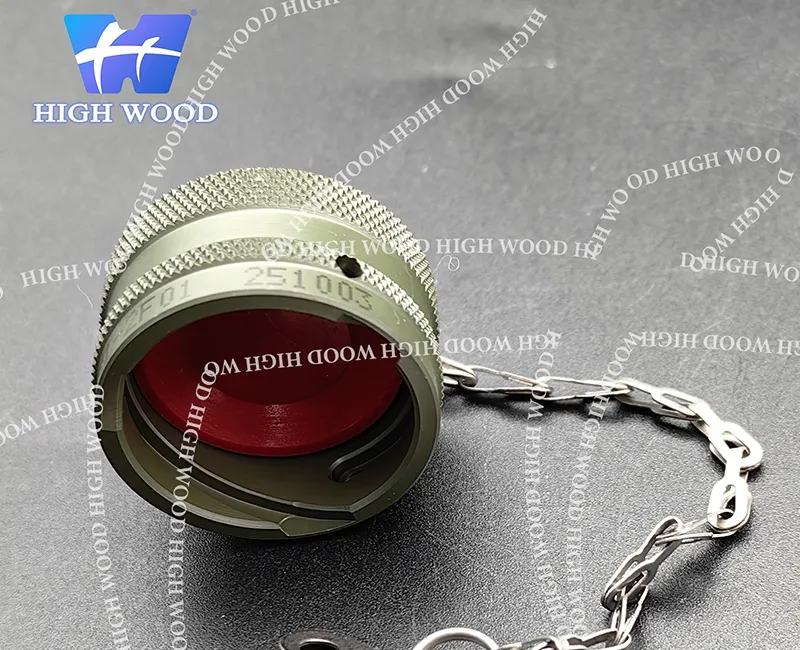

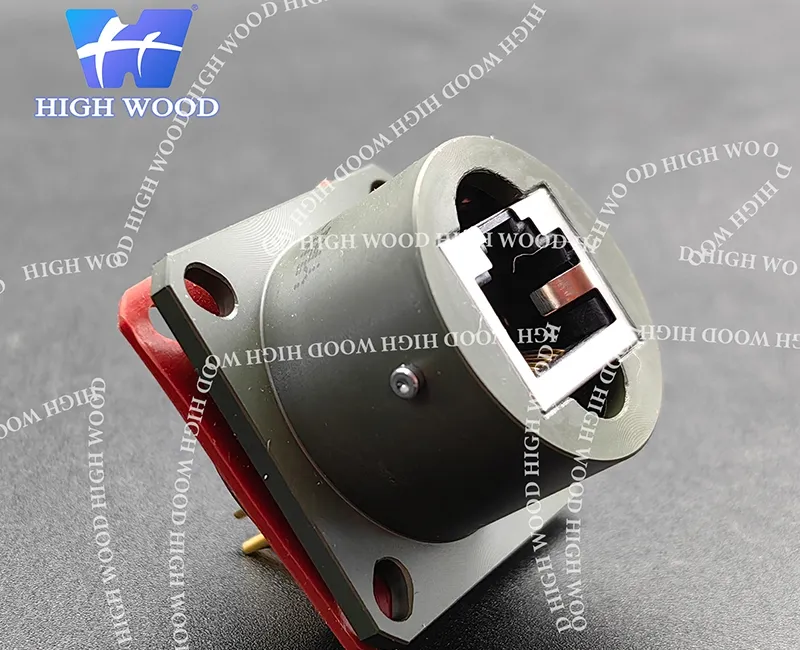

Bayonet Circular Connector, YW Series
Bayonet circular connectors integrate directly with standard interfaces such as RJ45, USB, Mini USB, and IEEE 1394. The design of these circular connectors is in accordance with MIL-DTL-26482 and MIL-DTL-38999 dimensional and performance requirements for industrial and electronic connection systems.
Specifications
| Environmental | Operating Temperature | -55 °C to +125 °C |
| Relative Humidity | 90% to 95% @ 40°C | |
| Ingress Protection (RJ45) | IP65 | |
| Mechanical & Dynamic | Vibration | 10 to 2000 Hz, 147 m/s² |
| Mechanical Shock | 490 m/s² | |
| Mating cycles | ≥ 500 cycles | |
| Electrical | Working Voltage | RJ45: 150 V USB / Mini USB: 30 V 1394: 40 V |
| Current Rating | RJ45: 1.5 A USB / Mini USB: 1.0 A 1394: 1.5 A | |
| Contact Resistance | RJ45: ≤ 20 mΩ USB: ≤ 30 mΩ 1394 / Mini USB: ≤ 50 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ | |
| Dielectric Withstanding Voltage (DWV) | RJ45: 1000 V USB / Mini USB / 1394: 500 V | |
| Data Transmission | Insertion Loss (RJ45) | 0.3 dB @ 100 MHz |
| Crosstalk Attenuation (RJ45) | 40 dB @ 100 MHz | |
| Characteristic Impedance (RJ45) | 100 Ω | |
| Data Rate (RJ45) | 1000 Mbps | |
| Standard Compliance | Compliant with USB 2.0 and IEEE 1394 standards |
Features
- Bayonet circular connectors use a bayonet quick-lock structure that enables fast mating and secure locking without loosening during operation
- Designed with waterproof and dustproof protection with high ingress protection rating for harsh outdoor environments
- They are resistant to high and low temperatures, vibration, and shock for stable mechanical performance
- Integrated network and data interfaces improve system integration and simplify wiring layout
- Gold-plated contacts provide good conductivity, stable signal transmission, and low loss
- Made with corrosion-resistant and aging-resistant materials to guarantee a long service life in outdoor use
- Their anti-misalignment design ensures precise installation and prevents incorrect mating that may damage equipment
