HWC Micro Connectors, 2mm Pitch Connectors
Board-to-Board Connectors, Wire-to-Wire Connectors, Wire-to-Board Connectors

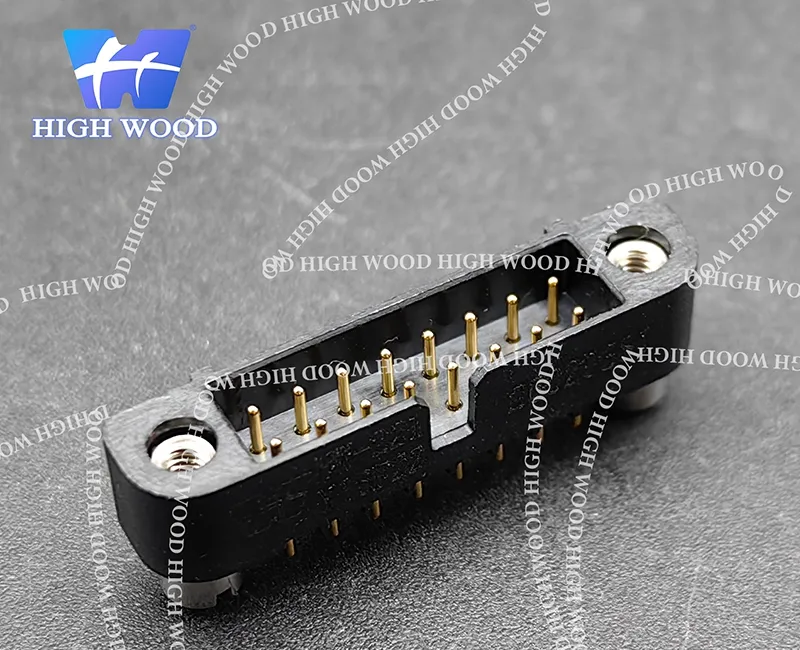

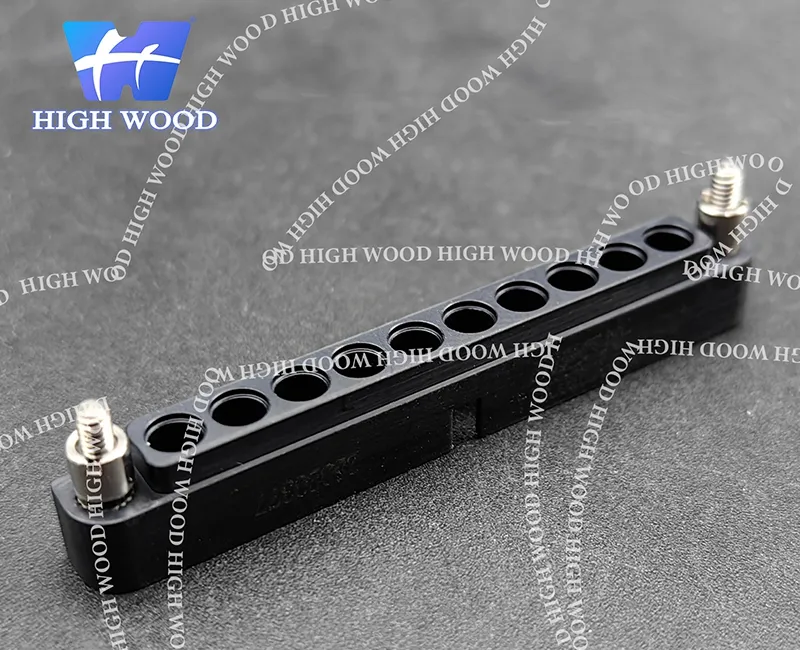

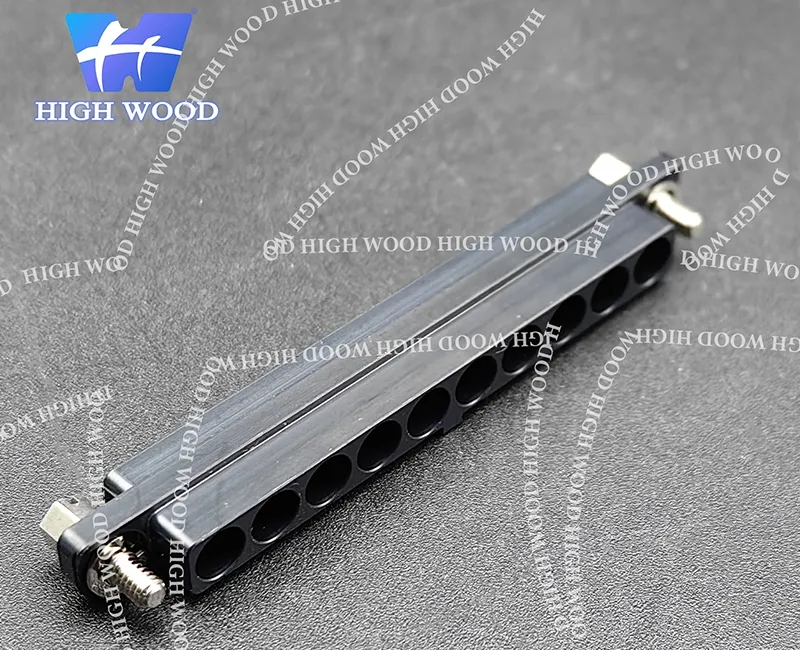

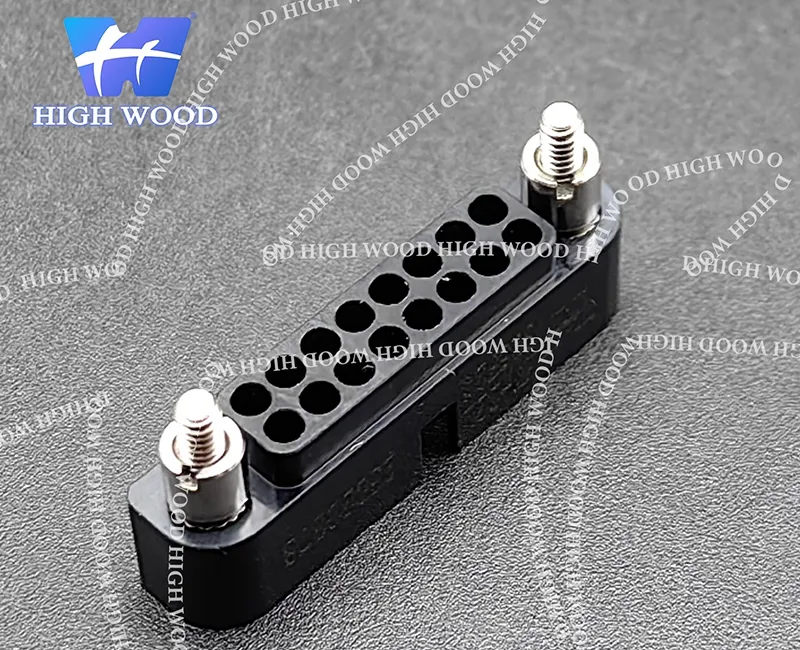

HWC and HW-M80 connectors are compact rectangular micro connectors with a 2 mm contact pitch. They are designed to meet the electrical and mechanical performance requirements of MIL-DTL-55302F and BS 9525 F0033. These electrical connectors are available for board-to-board, board-to-wire, and wire-to-wire connections, they carry signals and power between electronic components in aerospace, defense, and other systems exposed to vibration, shock, or limited installation space.
Specifications of LF Contacts
| Material | ||
| Insulator | Special PPS, UL 94-V0 flammability rating Radiation resistance No humidity absorption Oxygen free Note: PPS characteristics are recognized for space applications | |
| P.C. LF Contacts | Body/Tail: copper alloy / nickel + gold Socket: beryllium copper / nickel + gold | |
| CRIMP LF Contacts | Body: copper alloy / nickel + gold Socket: beryllium copper / nickel + gold | |
| Fixing Hardware | Jackscrews: stainless steel Latch: beryllium copper / plated nickel (HWC 100/200 only) | |
| Electrical | |
| Current Rating per Contact | 3A @ 25°C 2.2A @ 85°C |
| Working Voltage (Sea Level) | 800 VDC |
| Dielectric Withstanding Voltage (DWV) | 1200 VDC |
| Initial Contact Resistance | ≤ 10 mΩ |
| Insulation Resistance | ≥ 1000 MΩ |
| Mechanical | |
| Mating cycles | 500 cycles |
| Contact Insertion / Withdrawal Force | 0.2-2N |
| Contact Retention in Insulator | ≥ 10 N |
| Contact Replacement in Insulator | 3 cycles (crimp contacts only) |
| Environmental | |
| Operating Temperature | -55°C to +125°C |
| Vibration Severity | 0.75 mm, 10 g RMS 6 hours long random with superimposed sinusoid |
| Shock Severity | 100 g for 6 ms |

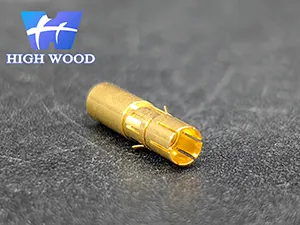

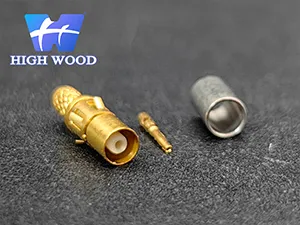

Specifications of HF/HP Contacts
| Materials | |
| Spring Loaded Parts | Beryllium copper, gold plated |
| Other Metal Parts | Copper alloy |
| Insulator (HF) | PTFE |
| Retaining Clip | Beryllium copper, nickel plated |
| Mechanical | |
| Mating Cycles | 500 cycles |
| Contact Insertion / Withdrawal Force | 0.50-5N |
| Environmental | |
| Operating Temperature | -55°C to +125°C |
| Salt Spray Test | 96 hours |
| Humidity Test | 56 days @ 90% RH |
| Electrical (HP Contacts) | |
| Contact Resistance | ≤ 6 mΩ |
| Dielectric Withstanding Voltage (DWV) (Sea Level) | 1000 V (RMS) |
| Rated Voltage | 180 V AC / 500 mA |
| Electrical (HF Contacts) | |
| Characteristic Impedance | 50 Ω / 75 Ω |
| Insulation Resistance | ≥ 10,000 MΩ @ 250 VDC |
| SWR (Stationary Wave Rate) | ≤ 1.05 + 0.04 F (GHz) |
Features

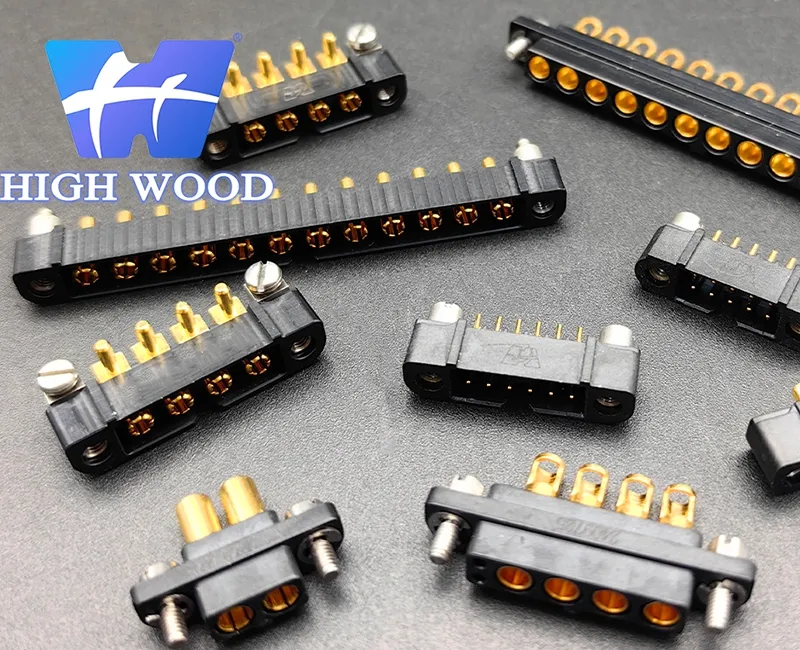

- Low-frequency, high-frequency, and high-power contacts can be combined in the same connector. One connector can take the place of two or three separate units, reducing the number of connections in the system.
- Depending on the configuration, the connectors can use up to 40% less PCB space, reduce overall volume by up to 60%, and weigh 20% to 50% less than conventional connector arrangements.
- Spring latches and built-in locking mechanisms are available to keep the connection in place under vibration and other demanding operating conditions.
- More than 15 million standard combinations are available, with traceability throughout production. Custom versions can also be developed by changing existing standard components.
- Connector samples can be prepared quickly, and production lead times can be adjusted to meet project needs. We also offer technical support during connector selection and order preparation.
