MIL-DTL-26482 Series I Circular Connectors, Solder Contact Connectors

MIL-DTL-26482 Series I Circular Connectors, Solder Contact Connectors

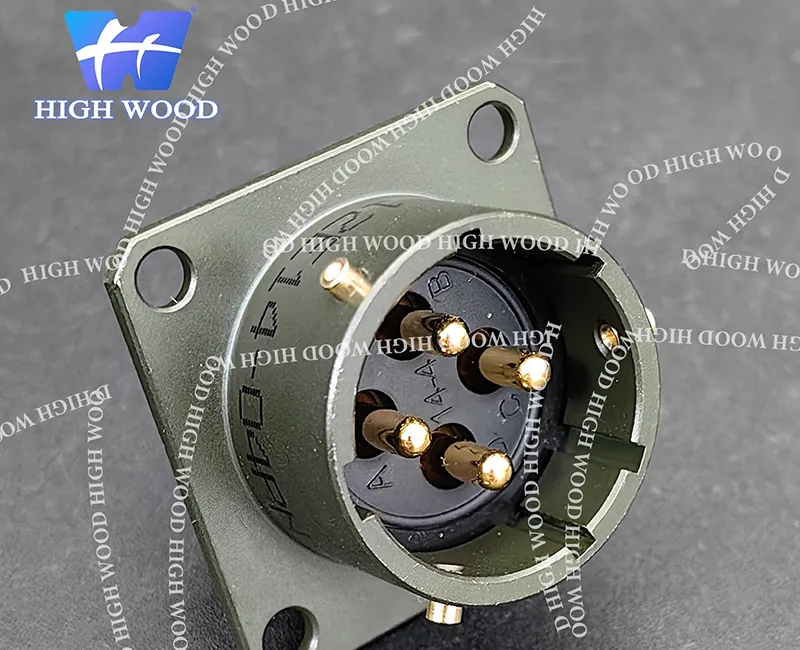

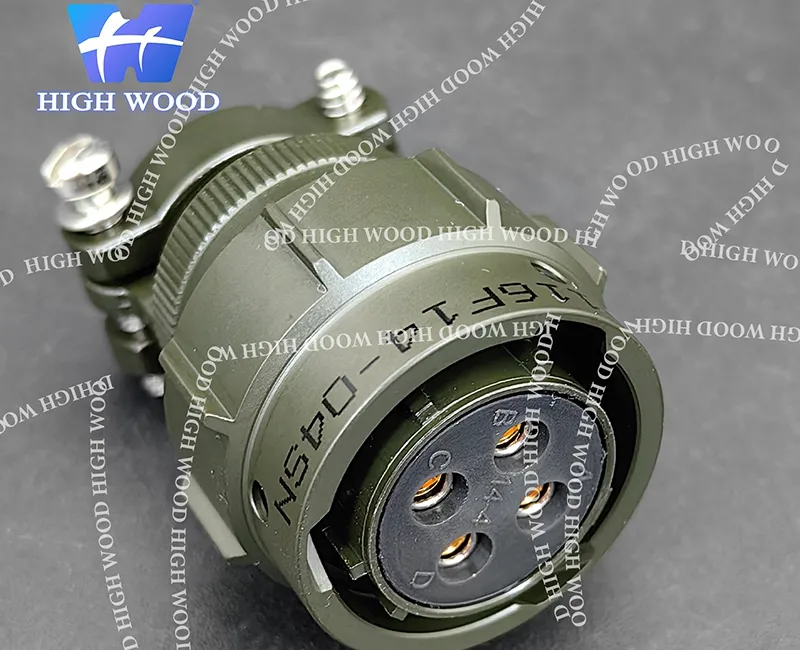

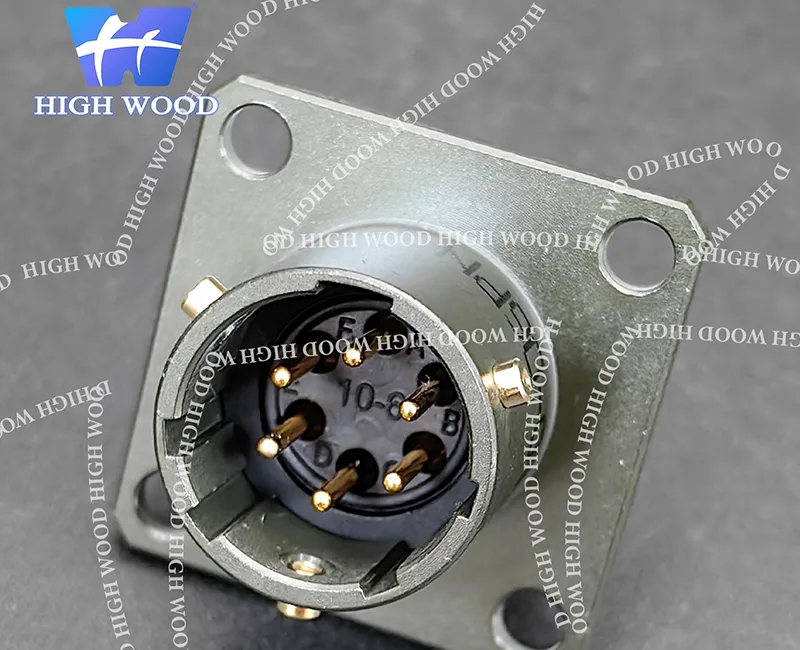

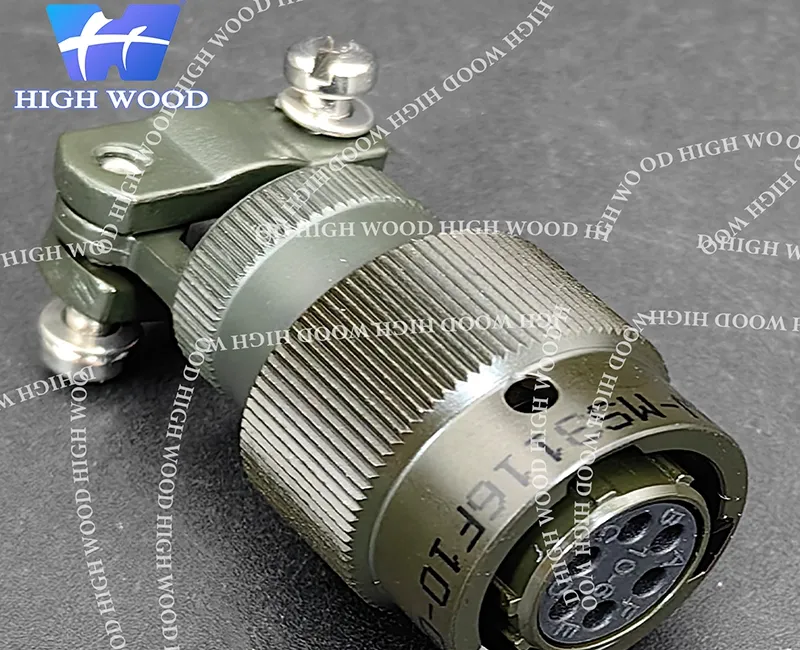

These bayonet coupling connectors (MIL-DTL-26482 Series I) are designed for quick mating, solder contact termination, compact size, and medium contact density. They are available in 3 shell materials and 9 shell sizes, with 4 surface finishes, 6 plug styles, 18 receptacle mounting types, 3 contact methods, and more than 30 contact arrangements. These mil spec circular connectors are widely used in commercial, military, aerospace and other applications

Contact Us
Specifications
Performance
Operating Temperature -55 °C to +125 °C
Shell Material Aluminum Alloy, Copper Alloy, Stainless Steel
Salt Spray Class L: 48 hours; Other Classes: 500 hours
Air Leakage Rate ≤ 4.6 × 10² Pa·cm³/s
Mating cycles ≥ 500 cycles
Mechanical Shock 490 m/s²
Vibration 10 to 2000 Hz , 147 m/s²
Contact
Contact Size Diameter Contact Resistance Current Rating
Size 20 ø1.00 mm ≤ 5 mΩ 7.5 A
Size 16 ø1.59 mm ≤ 3 mΩ 13 A
Size 12 ø2.39 mm ≤ 2 mΩ 23 A
Voltage
Altitude Voltage Service Rating I Service Rating II
Sea Level Working Voltage 600 V 1000 V
Dielectric Withstanding Voltage 1500 V 2300 V
22,000 m Working Voltage 300 V 450 V
Dielectric Withstanding Voltage 375 V 500 V
Features
  • Bayonet quick-lock
    The connectors use a 1/3-turn mechanism to complete mating and locking, ensuring fast and convenient operation for frequent plug-in and removal
  • High contact density
    Multiple contacts are integrated within a compact size to save internal equipment space
  • Solder-type contacts
    Early 26482 series mainly uses solder termination, while some versions also support crimp contacts
