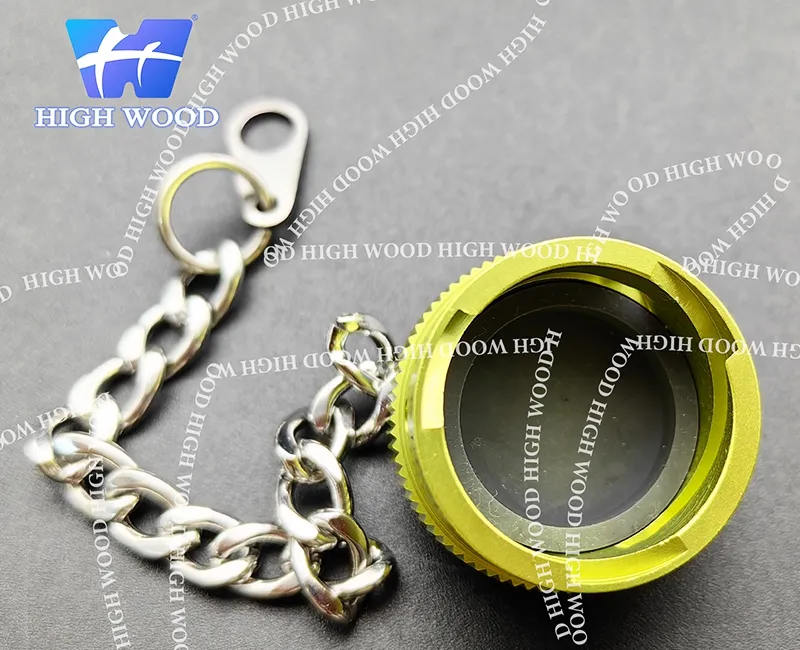

Environment-Resistant Electrical Connectors, ZH23 Series

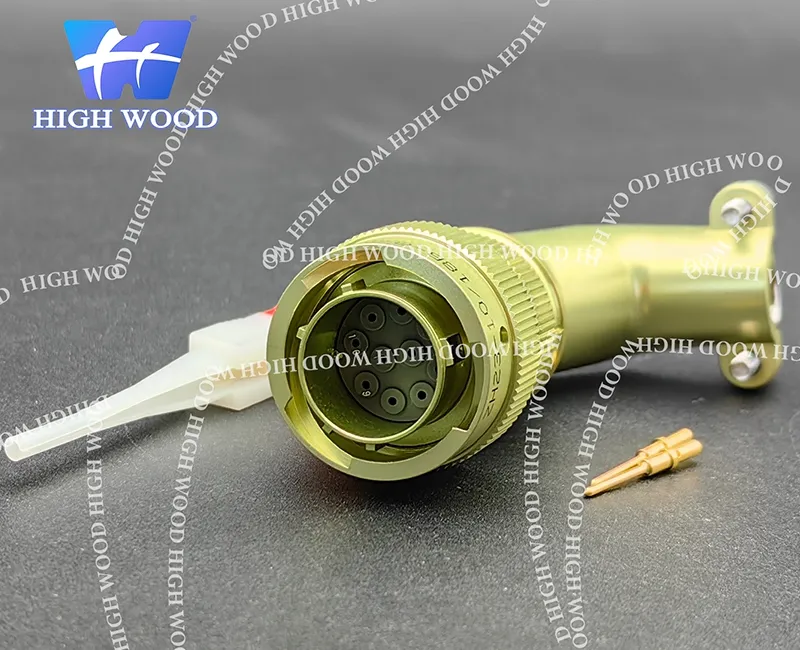

ZH23 (also referenced as CHЦ23 in Russian designation) environment-resistant electrical connectors have a bayonet coupling design with a five-key anti-mis-mating structure that helps prevent incorrect connections. They are suitable for low-frequency AC and DC circuits and are widely used in military, aerospace, and industrial automation systems that have strict requirements for electrical reliability in harsh environments.
Specifications
| Environmental & Mechanical | |
| Operating Temperature | -60 °C to +200 °C |
| Vibration | 1 to 5000 Hz, 40 g RMS |
| Mechanical Shock | Single Shock: 500 g peak Repetitive Shock: 150 g peak |
| Mating cycles | 500 cycles |
| Voltage Rating | ||
| Service Rating | Operating Voltage | Dielectric Withstanding Voltage |
| Service Rating A | 700 V | 2100 V |
| Service Rating B | 500 V | 1850 V |
| Service Rating C | 400 V | 1600 V |
| Contact Electrical Performance | ||
| Contact Diameter | Current Rating | Max. Contact Resistance |
| Ø1.0 mm | 11 A | ≤ 40 mΩ |
| Ø1.5 mm | 20 A | ≤ 2.5 mΩ |
| Ø2.0 mm | 35 A | ≤ 1.6 mΩ |
| Environmental & Standard | |
| Insulation Resistance | ≥ 5000 MΩ |
| Salt Spray | 96 h |
| Humidity | 95% to 98% RH, 40 °C to 65 °C |
| Standards | ГЕО.364.241ТУ, Q/3E20005-2003 |
Features
- Our environment-resistant electrical connectors are designed for harsh environments, with stable performance under high and low temperatures, vibration, and mechanical shock.

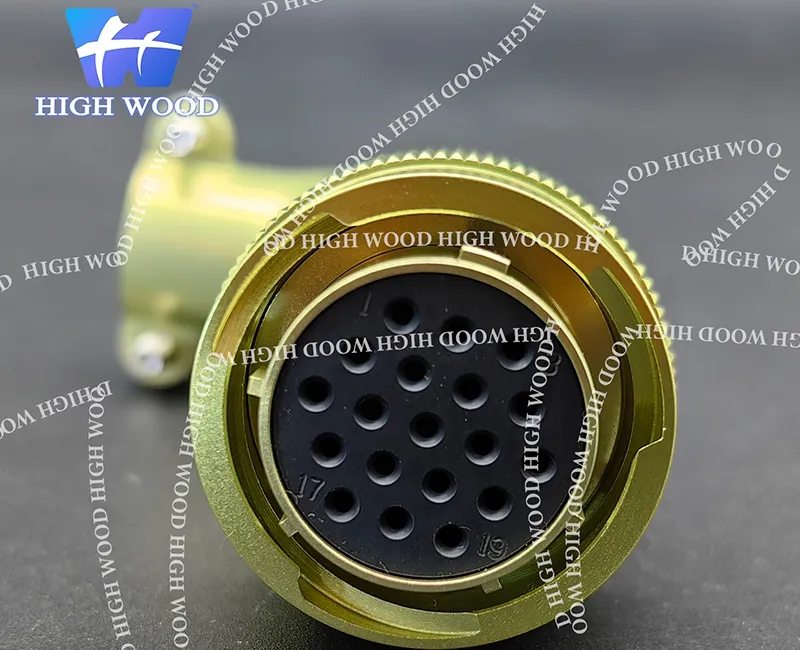

- Their five-key positioning structure prevents mis-mating and reverse insertion, which improves connection safety.

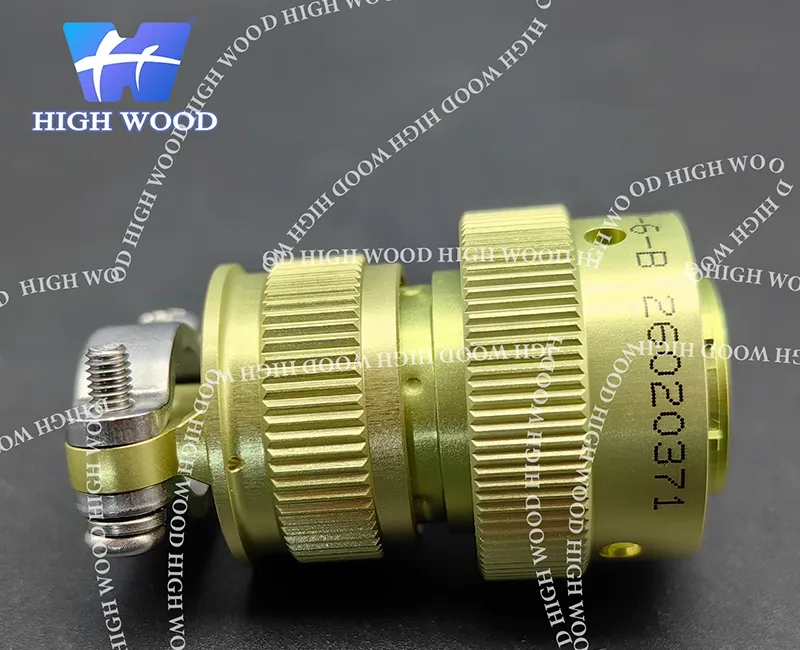

- Designed with a bayonet locking system to enable fast mating and unmating for easier installation and maintenance.
- Crimp-style rear release contacts allow individual removal and replacement, reducing maintenance effort and cost.
