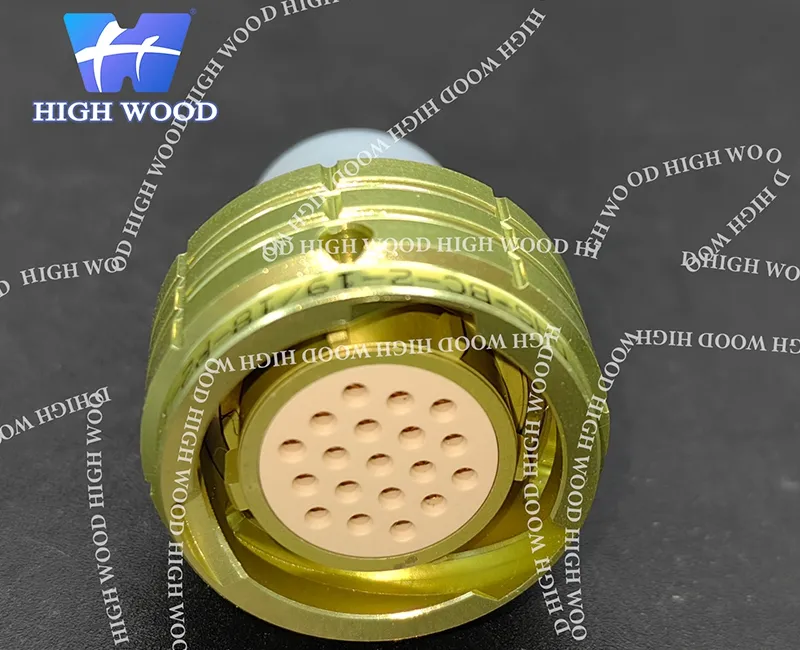

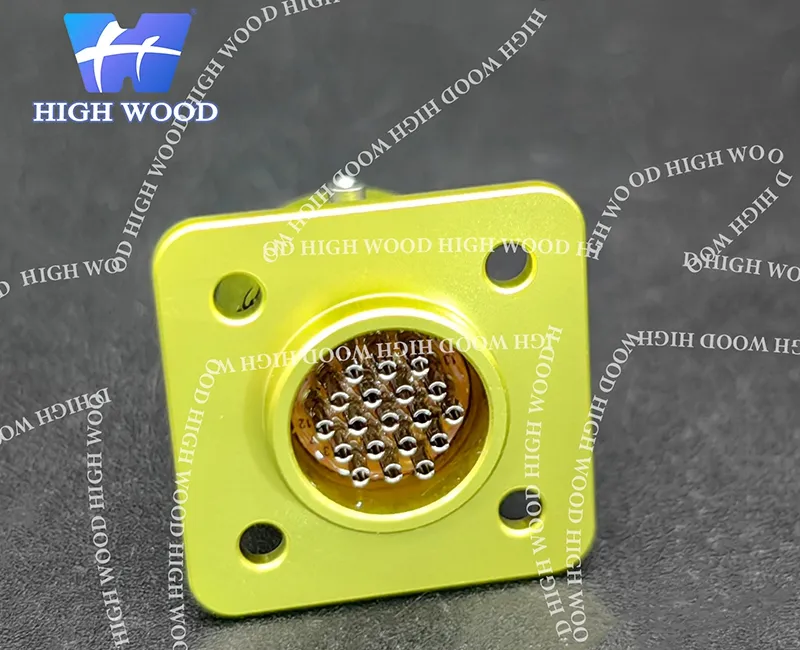

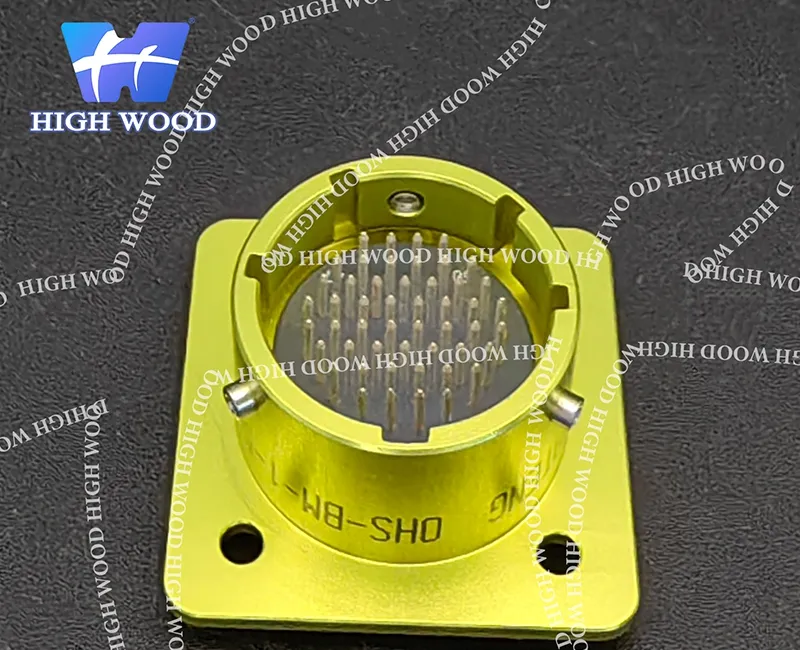

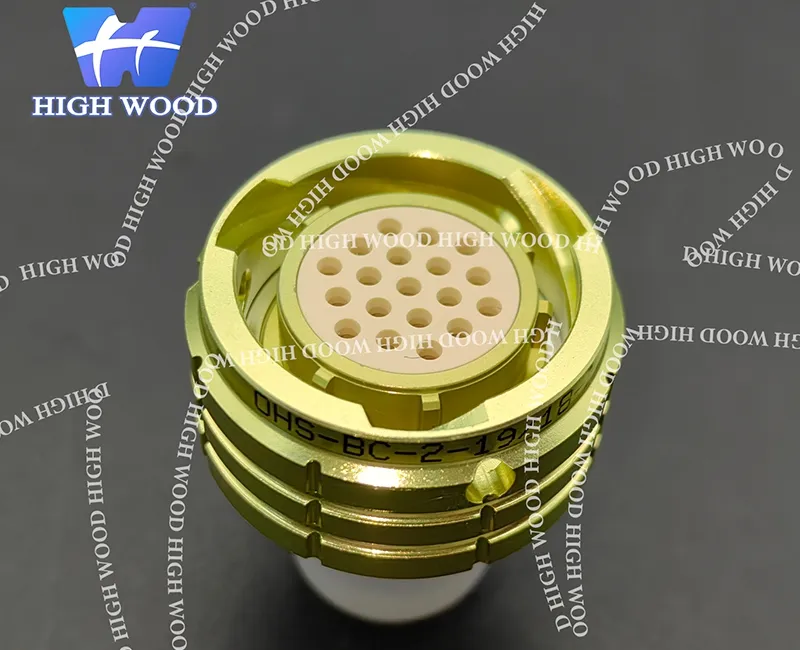

Ultra-Miniature Circular Connectors, OHS Series
These ultra-miniature circular connectors, (also referenced as ОНЦ-БС-1 (2)) are used for AC and DC electrical connections in compact electronic equipment. They have a bayonet quick-lock design that ensures stable mating in tight installation spaces and fits compact devices that require reliable electrical interconnection.
Specifications
| Contact Resistance | ≤ 5 mΩ |
| Insulation Resistance | ≥ 1000 MΩ |
| Operating Temperature | -60 °C to +85 °C |
| Vibration | 1 to 5000 Hz, 20 g |
| Mechanical Shock | Single: 1000 g peak Repetitive: 100 g peak |
| Contact Diameter | Ø1.0 mm |
| Mating cycles | 250 cycles |
| Operational Life (Continuous) | 5000 hours |
| Standards | БРО.364.030ТУ |
Electrical Specifications by Shell Size
| Shell Size | Number of Contacts | Current per Contact (A) | Total Current Rating (A) | Operating Voltage (V) |
| Size 10 | 4 | 3.7 | 15 | 250 |
| Size 12 | 7 | 3.1 | 22 | 250 |
| Size 14 | 10 | 3.0 | 30 | 250 |
| Size 18 | 19 | 2.1 | 40 | 250 |
| Size 22 | 32 | 1.8 | 60 | 250 |
| Size 27 | 50 | 1.5 | 75 | 250 |
Features
- Stable electrical performance with low contact resistance and high insulation resistance for reliable operation
- Thanks to their strong resistance to vibration and mechanical shock, they can be used in temperatures from -60℃ to +85℃.
- Available in flexible configurations with different shell sizes and contact layouts to match various AC and DC electrical connection needs.
- Long service life with 250 mating cycles and up to 5000 hours of continuous operation.
- Quick bayonet locking system and easy wiring design with straight plastic rear termination for fast assembly and maintenance.
